Dormer A110 HSS Long Series Drill 5/32in OL119mm WL78mm DORLS532

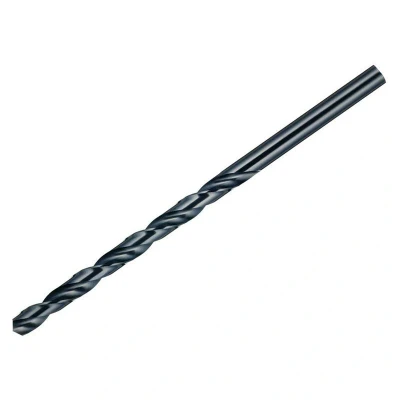

General description This Dormer A110 Imperial Long Series Drill Bit is a high-speed steel (HSS) drill designed for deep hole drilling in a variety of materials. It is suitable for both hand and machine use, making it ideal for tasks that require extended reach and precision. Manufactured to meet DIN 340RN/BS328/ISO 494 standards, this drill bit ensures quality and reliability. Technical specifications Tip diameter: 5/32 inch (approximately 3.97 mm) Working length: 78 mm Overall length: 119 mm Material: High-Speed Steel (HSS), vapor-hardened from 1 mm diameter onwards Point angle: 118° Shank type: Straight Cutting direction: Right-hand Tolerance: Nominal diameter h8 Flute length: 78 mm Number of flutes: 2 Web thickness: Standard Depth of drilling: 6 times the diameter (6xD) Compatibility and accessories Designed for use in various drilling machines and hand drills compatible with cylindrical shanks Suitable for drilling deep holes in steel, cast iron, and other materials Installation
