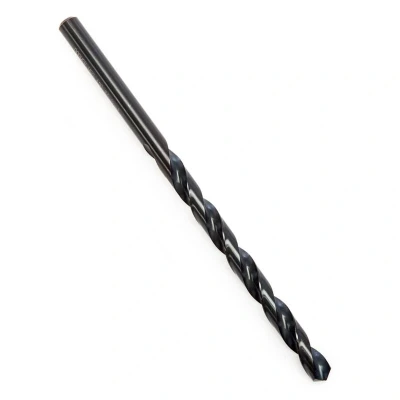

Dormer A110 HSS Long Series Drill 8.50mm OL165mm WL109mm DORLS850

ManoMano

General description The Dormer A110 Metric Long Series Drill Bits are designed for general-purpose long reach drilling. They are ideal for creating deep holes in a variety of materials and can be used with both hand and machine tools. Technical specifications Material: High-Speed Steel (HSS) Tip diameter: 8.50 mm Working length: 109 mm Overall length: 165 mm Point angle: 118° Shank: Cylindrical Drilling depth: 6 times the diameter (6xD) Tolerance: h8 Coating: Dampfanlassbehandlung (dampening treatment) Number of pieces per box: 5 Compatibility and accessories Compatible with standard drill chucks that accept cylindrical shanks of 8.5 mm diameter Suitable for drilling in steel up to 800 N/mm² Installation Insert the drill into a compatible drill chuck, ensuring it is securely tightened Use appropriate drilling speeds and feed rates for steel or cast iron Usage Use for deep drilling in steel and cast iron applications Suitable for drilling through bushings and other deep-hole

Power Tools Direct

The Dormer A110 Metric Long Series Drill Bits is a general purpose long reach drill. Ideal for drilling deep holes in a wide range of materials and are suitable for both hand and machine use. Manufactured to: DIN 340RN/BS328/ISO 494.Tip diameter: 8.50mm.Working length: 109mm.Overall length: 165mm.PTDDORLS850

Amazon

High Speed Steel (HSS) provides good hot hardness when drilling 118 degree conventional point provides easy re-grinding Steam oxide finish reduces built-up-edge and helps lubricity Increased length allows deeper holes or increased reach For use on machines or hand held applications
