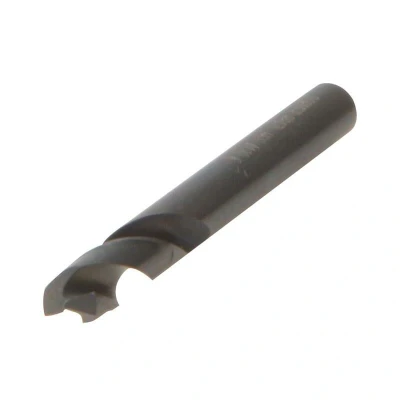

Dormer A120 6.00MM HSS Stub Drill

General description This Dormer A120 Metric HSS Stub Drill Bit is designed for general machining applications, making it ideal for use in portable drills, turret machines, and automatic lathes. The drill features a special split-point tip that ensures easy starting and precise drilling, reducing wandering and improving accuracy. Technical specifications Material: Vapor-tempered high-speed steel (HSS) Model: A120 Tip angle: 135° Cutting profile: Cross-cut with a diameter of 3.0 mm Shank: Cylindrical Cutting direction: Right-hand Maximum steel load capacity: 800 N Feed rate: 0.13 mm/W Nominal diameter tolerance: h8 Drilling depth: 2.5 times the diameter (2.5×D) Overall Length (OL): 66 mm Working Length (WL): 28 mm Diameter: 6.0 mm Compatibility and accessories Compatible with portable drills Compatible with turret machines Compatible with automatic lathes Installation Insert the drill into the compatible drill chuck Ensure it is securely tightened before use Usage Use in metalworking

The Dormer A120 Metric HSS Stub Drill Bits for general machining applications and is ideal for use in portable drills turrets and automatic lathes. Special split-point ensures easy starting and accurate drill location.
