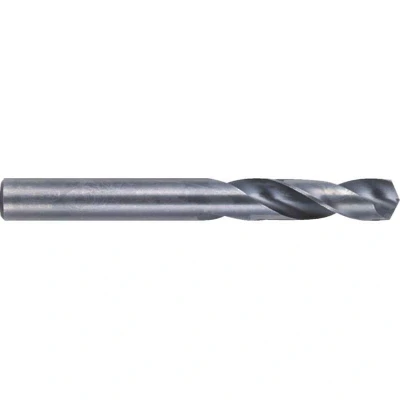

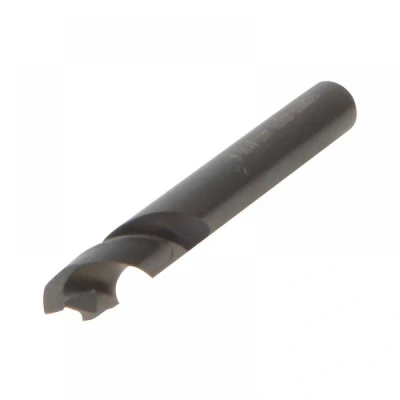

Dormer A120 HSS High Speed Steel Stub Drill Bit with 118 Degree Split Point, Pack of 10 pcs

General description The Dormer A120 5.00MM HSS Stub Drill is a high-quality drill bit designed for general machining applications. It is ideal for use in portable drills, turrets, and automatic lathes. The drill features a special split-point design that ensures easy starting and accurate drill location, making it suitable for heavy-duty applications. Technical specifications Material: High-Speed Steel (HSS) Drill Diameter: 5mm Overall Length: 62mm Flute Length: 26mm Point Angle: 135° Drill Diameter Tolerance: h8 Number of Flutes: 2 Cutting Direction: Right Hand Finish/Coating: Steam Tempered Flute Construction: Ground Flute Flute Type: Spiral Helix Type: Normal Helix Standards Met: DIN 1897 MFR Part No.: A1205.0 Compatibility and accessories Compatible with automatic drilling machines and handheld drills Suitable for use in steel up to 800 N/mm² Installation Insert the drill into the chuck of your drill or automatic machine Ensure the shank is securely tightened before use Use

High Speed Steel (HSS) provides good hot hardness when drilling 135 degree split point provides self centering, low thrust and easier penetration Steam oxide finish reduces built-up-edge and helps lubricity For use on machines or hand held applications
