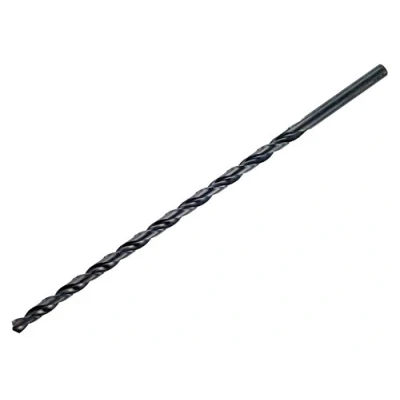

Dormer A125 1/8"X200MM HSS S/S E Extra Length Drill

ManoMano

General description This Dormer A125 1/8" x 200mm HSS S/S E Extra Length Drill is designed for precise and deep drilling in steel and other hard materials. With a total length of 200mm and a cutting length of 150mm, this drill bit features a cylindrical shank that fits securely in most three or four jaw chucks. It is ideal for general-purpose deep hole drilling, capable of drilling up to 10 times its diameter without the need for centering. Technical specifications Drill Diameter: 1/8 inch (0.1252") Total Length: 200mm Cutting Length: 150mm Shank Diameter: 3.18mm Tip Angle: 118° Material: High-Speed Steel (HSS) Standards Met: BS 328 Tolerance: h8 Cutting Direction: Right-hand Flute Type: Spiral Number of Flutes: 2 Finish/Coating: Bright Helix Type: Normal Helix Compatibility and accessories Compatible with standard drill chucks that accept cylindrical shanks Installation Insert the drill into a compatible drill chuck, ensuring a secure fit Use appropriate safety gear and secure the

Amazon

High Speed Steel (HSS) provides good hot hardness when drilling 118 degree conventional point provides easy re-grinding Steam oxide finish reduces built-up-edge and helps lubricity Increased length allows deeper holes or increased reach For use on machines or hand held applications
