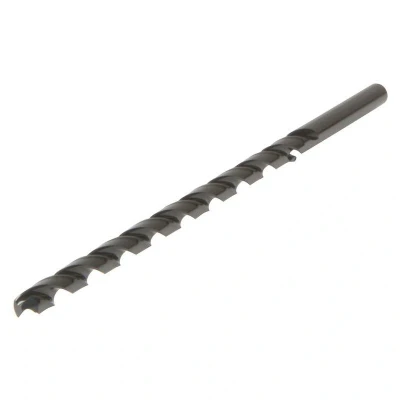

Dormer A125 HSS Extra Length Drill 3.00mm x 160mm OL160mm WL100mm DORA125300B

General description Dormer A125 HSS Extra Length Drill is a versatile general-purpose drill designed for long reach and deep hole applications. It is capable of drilling up to ten times its diameter, making it ideal for tasks requiring extended drilling depth. Technical specifications Model: A125 Material: High-Speed Steel (HSS) Tip diameter: 3 mm Working length: 100 mm Overall length: 160 mm Cutting direction: Right-handed Quality: Profile cutting Nominal diameter tolerance: h8 Drilling depth: 10 times the diameter (10xD) Compatibility and accessories Compatible with standard drill chucks and drill presses that accept HSS drills Installation Insert the drill into a compatible drill chuck, ensuring it is securely tightened Usage Use for drilling deep holes in various materials, especially where extended reach is required Ensure proper cooling and lubrication during use to prolong drill life Other information

High Speed Steel (HSS) provides good hot hardness when drilling 118 degree conventional point provides easy re-grinding Steam oxide finish reduces built-up-edge and helps lubricity Increased length allows deeper holes or increased reach For use on machines or hand held applications
