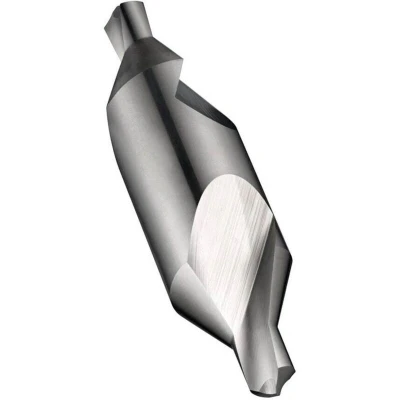

Dormer A200 HSS Centre Drill 10.00mm x 4.00mm DORA2001000

General description This Dormer A200 HSS Centre Drill (DIN 333A) is designed for precise drilling and creating pilot holes in components that require machining between centres. It features a conical shape with a 60° included countersink, making it suitable for accurate centering holes in various materials. Technical specifications Material: High-Speed Steel (HSS) Coating: None Point angle: 118° Included countersink angle: 60° Tip diameter: 10.00 mm Body diameter: 4.00 mm Working length: 4 mm Total length: 56.0 mm Standards: DIN 333A, DIN 332 Part 1 Shape A Compatibility and accessories Compatible with standard drill chucks and drill presses Suitable for use with various materials including carbon steel, alloy steel, and gray cast iron Installation Insert the drill into a compatible drill chuck or machine spindle Ensure the drill is securely tightened before use Usage Use for creating precise centering holes in metal or other materials Apply appropriate drilling speed and pressure for

Dormer A200 HSS Centre Drill (DIN 333A) for drilling components that require machining between centres. Has a 118° point angle with a 60° included countersink.Tip diameter: 10mm.Working length: 4mm.Overall length: 56.0mm.PTDDORA2001000
