Dormer Centre Drill 60, Pack of 1

ManoMano

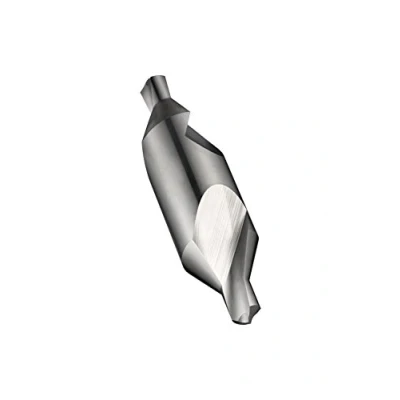

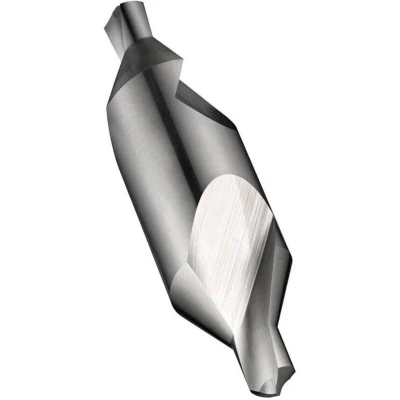

General description This Dormer A200 HSS Centre Drill is designed for drilling precise holes that require machining between centers. Made from high-speed steel (HSS), it features a 118° point angle with a 60° included countersink, making it ideal for creating accurate centering holes in various materials, including steel and cast iron. Technical specifications Tip diameter: 8mm Working length: 3.15mm Overall length: 50mm Point angle: 118° with 60° countersink Material: High-speed steel (HSS), uncoated Standard: DIN 333A Compatibility and accessories Compatible with standard drill chucks and holders for metalworking Suitable for drilling steel, cast iron, and similar materials Installation Insert the drill into a compatible drill chuck or holder Secure tightly to ensure stability during operation Usage Use in drilling machines or hand drills with appropriate power Apply steady pressure and maintain proper speed for clean, precise holes

Amazon

High Speed Steel (HSS) provides good hot hardness when drilling 60 degree DIN 333(Form A) produces accurate centres in the end of shafts Single ended on sizes below 1mm Primary for use on machines
