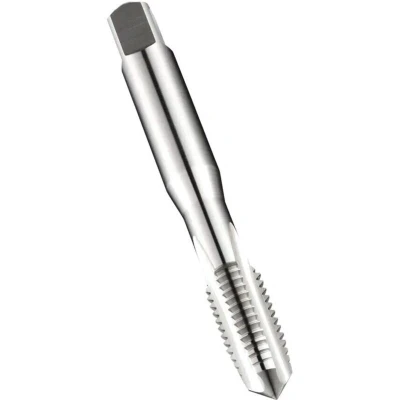

Dormer E500 HSS Coarse Tap Straight Flute 14mm Second DORE500140S

General description Series E500 HSS Straight Flute Second Taps are ideal for hand or machine tapping in a wide variety of materials. Manufactured from high-speed steel with a bright finish, these taps offer increased rigidity and durability, featuring a second - 3-5 pitch chamfer length. They are designed for cutting internal threads in metal components, specifically for ISO metric threads such as M14 with a 2.00 mm pitch. Technical specifications Material: High-Speed Steel (HSS) Finish: Bright Flute Design: Straight Chamfer: Second Class of Fit: 6H Dimensions Standard: ISO 529 Overall Length: 95.0 mm Shank Diameter: 11.2 mm Square Width: 9.0 mm Thread Size: M14 Thread Pitch: 2.00 mm Thread Length: 24 mm Number of Flutes: 4 Thread Direction: Right Hand Tap Type: Straight Flute Surface Treatment: Uncoated Tolerance: Class 2 for 6H Fit Compatibility and accessories Compatible with standard ISO metric threading applications Designed to be used with appropriate tapping tools and handles

Dormer Hand Taps - Straight Flute - Second Lead - M14 x 2mm - Bright - Pack Qty: 1SpecificationSize: M14 x 2mmFinish: BrightBrand: DormerPack Quantity: 1PTDFORDIRDORE500M14NO2
