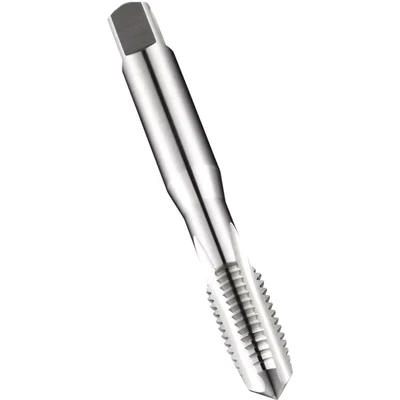

Dormer E500 HSS Straight Flute Hand Tap Metric with Bright finish, ISO standard, Single Pack

General description This Dormer E500 M6X1.00MM Plug Tap is a manual threading tool designed for cutting threads directly onto materials. It features a metric ISO M6 thread with a pitch of 1.00 mm and a tolerance class of 6H. Made from high-speed steel (HSS) with a polished surface, it is suitable for both through and blind threading in structural steel and carbon steel. The tool is designed for precise and efficient threading operations, capable of cutting threads that are 2 to 3 times the pitch length. Technical specifications Thread type: Metric ISO M6 Pitch: 1.00 mm Tolerance class: 6H Dimensions conform to ISO 529 standards Shank diameter: 6.3 mm Square drive: 5.0 mm Cutting length: 13 mm Cutting direction: Right-handed Material: High-speed steel (HSS) Surface finish: Bright Overall Length: 66.0 mm Number of Flutes: 3 Thread Length: 13 mm Tapping Depth: 26.0 mm Chamfer: Plug Class of Fit: 6H Series: E500 Compatibility and accessories Compatible with standard threading machines and

Dormer E500 straight flute taps are the only type of taps that can be used by hand but they may also be used in a machine if required. Extremely versatile can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1 2 and 3 Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 6.0mm x 1.0 bottomingPTDDORE50060B
