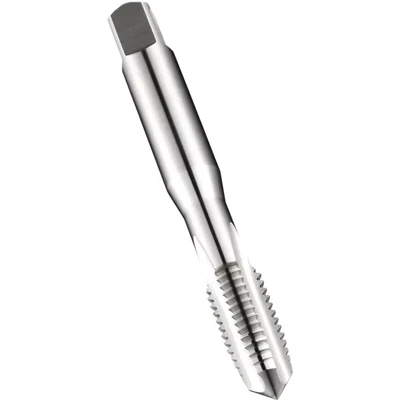

Dormer E500 HSS Straight Flute Hand Tap Metric with Bright finish, ISO standard, Single Pack

The Dormer E500 HSS Coarse Tap is designed for creating internal threads in a variety of materials, suitable for both manual and machine operation. It features a straight design and right-hand cutting action for efficient, clean threading. The tap is made from High-Speed Steel with a polished surface and is intended for through and blind holes. It uses a square drive of 5.0 mm and is specified for ISO M6 metric threads, with a 1.00 mm pitch and an overall thread length of about 13 mm. The shank diameter is 6.3 mm, and the tool conforms to ISO 529 standards. The design includes straight flute geometry to support dependable performance across different applications, and a bright finish to reduce built-up edge when tapping materials that tend to stick. This versatile tap is suitable for use in hand tapping and can be employed with machine tools that accept standard HSS taps.

Technical specifications

Size: 6.0 mm x 1.0; Thread type: ISO M6; Pitch: 1.00 mm; Thread length: ≈13 mm; ISO 529 compliance; Shank diameter: 6.3 mm; Drive: square 5.0 mm; Material: High-Speed Steel (HSS) with polished surface; Tolerance: Class 2 for 6H; Flute geometry: Straight; Compatibility: for tools accepting standard HSS taps; Installation: insert into tool with appropriate drive, align to avoid cross-threading; Orientation: right-hand cutting; Finish: bright to reduce sticking; Applications: threading through and blind holes; Suitable for manual and machine operation.

Safety: Ensure proper alignment to avoid cross-threading; use the correct drive and tool setup to match the square drive, and follow standard machine tool precautions.
