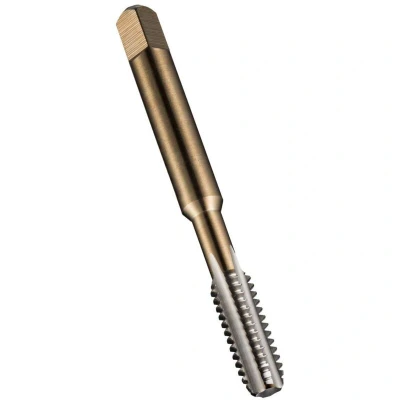

Dormer E500 HSS Straight Flute Hand Tap Metric with Bright finish, ISO standard, Single Pack

ManoMano

General description The Dormer E500 HSS Coarse Tap is designed for cutting internal threads with a straight profile. This versatile tool can be used by hand or in a machine, making it suitable for tapping through or blind holes in various materials. The HSS hand tap NO2 features a metric M20 thread with a 2.50 mm pitch and a 6H tolerance class, ideal for precise internal threading in metalworking applications. Technical specifications Thread type: Internal, straight profile Thread size: M20 x 2.50 mm Tolerance class: 6H Material: High-speed steel (HSS) Surface finish: Polished Shank diameter: 14 mm Drive type: Square (11.2 mm) Overall length: 14 mm Thread length: 29 mm Cutting direction: Right-hand Applicable for through and blind holes Compatibility and accessories Compatible with standard tap wrenches and handles designed for square drives Installation Insert the tap into a suitable tap wrench or handle with a matching square drive Secure the tap firmly to prevent slipping during

Power Tools Direct

Dormer E500 straight flute taps are the only type of taps that can be used by hand but they may also be used in a machine if required. Extremely versatile can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1 2 and 3 Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 20.0mm x 2.5 secondPTDDORE500200S

Amazon

High Speed Steel (HSS) provides good hot hardness when tapping Straight flute designed for threading both through or blind holes Bright finish helps prevent built-up-edge when tapping sticky materials Primary for use in hand held applications
