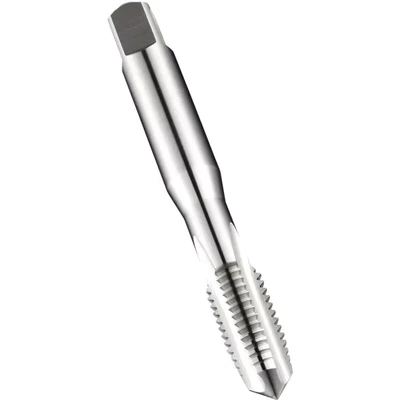

Dormer E500 M10X1.50MM Second Tap

General description This Dormer E500 HSS Coarse Tap is designed for cutting internal threads in metal materials. It features a straight flute design, making it suitable for creating precise threads in various steel types, including construction and carbon steels. Made from high-speed steel (HSS) with a polished surface, this tap ensures durability and smooth operation. Technical specifications Thread type: Metric ISO M10 Thread pitch: 1.50 mm Tolerance class: 6H Thread length: 18 mm Overall length: 80 mm Shaft diameter: 10 mm Square drive size: 8 mm Shaft type: Cylindrical with square drive Cutting edges: 3 Cutting direction: Right-handed Material: High-speed steel (HSS) Surface finish: Polished Standard compliance: ISO 529 Compatibility and accessories Compatible with standard tap wrenches and tap handles Suitable for use with drilling machines for initial hole preparation Installation Secure the tap in a suitable tap wrench or handle Ensure the hole is drilled to the correct

Dormer E500 straight flute taps are the only type of taps that can be used by hand but they may also be used in a machine if required. Extremely versatile can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1 2 and 3 Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 10.0mm x 1.5 secondPTDDORE500100S
