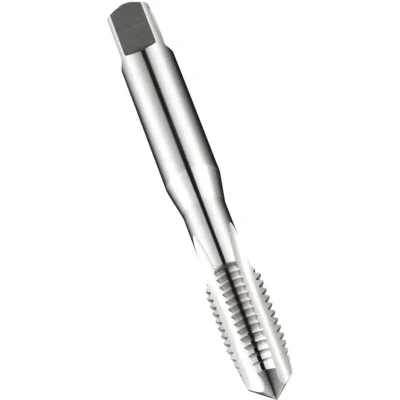

Dormer E500 M3X0.50MM Taper Tap

Dormer E500 straight flute taps are the only type of taps that can be used by hand but they may also be used in a machine if required. Extremely versatile can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1 2 and 3 Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size: 3mm x 0.50 Taper.PTDDORE50030T

General description Dormer E500 straight flute taps are designed for versatility, allowing for hand or machine use. They are suitable for tapping through or blind holes in various materials. When tapping blind holes, it is recommended to use a set of taps, which includes a taper (first tap), intermediate (second tap), and bottoming (third or plug tap). Technical specifications Material: HSS (High Speed Steel) Size: 3mm x 0.50mm Type: Straight Flute Taper Tolerance Class: 2 for 6H Fit Surface treatment: Bright Flute Geometry: Straight Flutes MPN: DORE50030T EAN: 7320760154823 Other information
