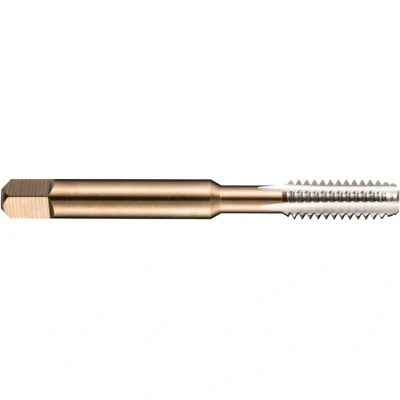

Dormer E513, Plug Tap, Straight Flute, M12 X 1.25mm, High Speed Steel, Metric Fine, Bright

ManoMano

Dormer: E513 M12x1.25mm HSS PLUG STRAIGHTFLUTE TAP ISO 529 Series E513 HSS Straight Flute Plug Tap - Metric Fine Hand or machine taps for use on a wide variety of materials Metric Fine HSS Bright finish Straight flute for through or blind holes 1.5xD Manufactured to ISO 529 Sizes M3 to M50 Plug tap 1-2 pitch chamfer length MPN: 5976721 EAN: 7320760096116 E513 M12x1.25mm HSS PLUG STRAIGHTFLUTE TAP ISO 529 Attributes: Chamfer: Plug Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Bright MFR Part No.: E513M12X1.25NO.3 Material: High Speed Steel Number of Flutes: 3 Overall Length: 89.0mm Pitch: 1.25 Series: E513 Shank Diameter: 9.0mm Square Width: 7.1mm Tap Type: Straight Flute Thread Direction: Right Hand Thread Length: 22.0mm Thread Size: M12 Thread Standard: Metric Fine

Zoro Tools

Series E513 HSS Straight Flute Plug Tap - Metric Fine Hand or machine taps for use on a wide variety of materials Metric Fine HSS Bright finish Straight flute for through or blind holes 1.5xD Manufactured to ISO 529 Sizes M3 to M50 Plug tap 1-2 pitch chamfer length

Amazon

High Speed Steel (HSS) provides good hot hardness when tapping Straight flute designed for threading both through or blind holes Bright finish helps prevent built-up-edge when tapping sticky materials For use on machines or hand held applications
