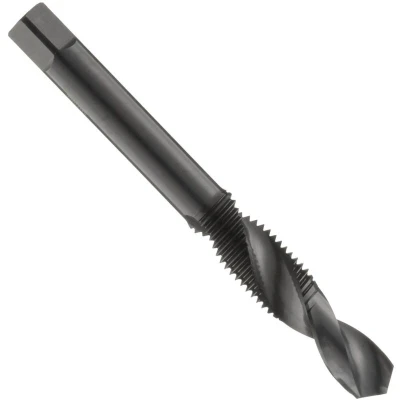

Dormer E650M6 Series E650 HSS 30 Spiral Flute Combination Drill Tap, Bright Finish, M6 x 1.00mm 84mm

General description This Dormer E650M6 HSS Metric Coarse Combination Drill & Spiral Flute Tap M6 is designed for drilling and threading holes in one operation. It features a right-hand thread and a 30° spiral flute for efficient chip removal and precise threading. Made from high-speed steel (HSS), it provides durability and sharpness suitable for both professional and DIY applications. Technical specifications Size: M6 Tip Diameter: 5.0 mm Overall Length: 84 mm Thread direction: Right-hand Spiral flute angle: 30° Material: High-Speed Steel (HSS) Standard: DORMER-ISO Shank diameter: 6.3 mm Shank length: 8 mm Shape: C 2 - 3 Tolerance field: 6H Number of cuts: 2 Square drive: 5 mm Compatibility and accessories Compatible with standard tap wrenches and holders that fit a 5 mm square drive Suitable for use with various threading machines and manual tap handles Installation Insert the tap into a compatible tap wrench or holder with a 5 mm square drive Ensure the tap is properly aligned with

These Dormer Metric Coarse Combination Drill & Spiral Flute Taps allow drilling/threading holes in one single operation. They are made from High Speed Steel and are suitable for use on most materials. They can be used in reversible variable speed power tools. Manufactured to ISO Standards.Size: M6Tip Diameter: 5.0mmOverall Length: 84mmPTDDORE650M6
