Dormer F302 10MM HSS Die Nut

ManoMano

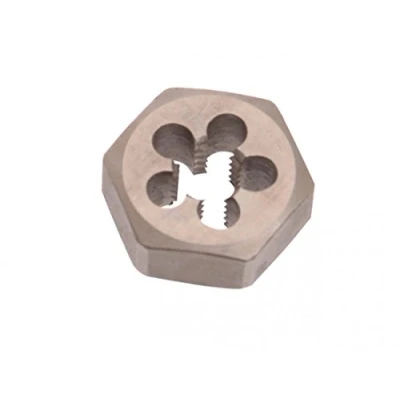

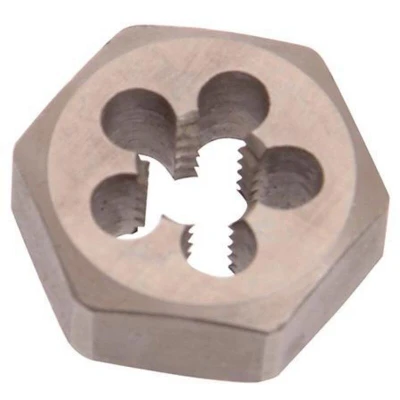

General description This high-quality metric threading tool is designed for repairing and reclaiming damaged or worn screw threads in various materials. Dormer Die Nuts are used to reclaim worn or damaged threads in most materials, ensuring precise and reliable results for home improvement and DIY projects. Technical specifications Thread size: M10 Pitch: 1.50 mm Tolerance class: 6g Material: High Speed Steel (HSS) Surface treatment: Bright finish Dimensions conform to BS 1127:1950 standards Width: approximately 0.92 inches Thickness: about 3/8 inch (measurements may vary) Compatibility and accessories Suitable for repairing threads in structural steel, carbon steel, stainless steel (ferritic), gray cast iron, ductile cast iron, and brass Available in various thread forms including MF, UNC, and G (BSPF) Installation Use with compatible threading machines or hand tools designed for metric screw repair Ensure the tool is properly aligned with the damaged thread before operation Usage

Amazon

Bright finish - prevents work piece material from sticking to the cutting edges Premium HSS material - high speed steel provides superior performance and extend tool life Die Nut - designed for repairing damaged external threads by re-cutting the original thread form 6g tolerance - designed to create accurate screw threads to 6g tolerance Hand die - should only be used for repairing threads by hand with the appropriate imperial size spanner
