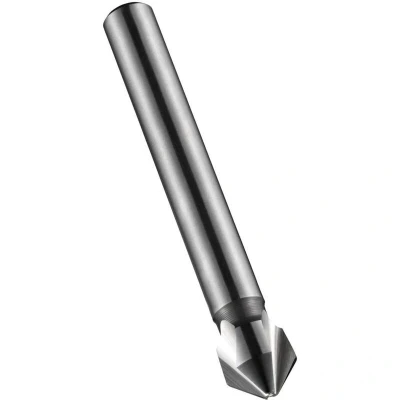

Dormer G136 HSS High Speed Steel Straight Shank Countersink with 90 Degree Angle, Single Pack

ManoMano

General description This Dormer G136 HSS Straight Shank 90° Countersink is designed for creating precise 90° countersinks in various materials. It can also function as a de-burring tool, making it versatile for different applications. Technical specifications Maximum diameter: 8.00 mm Total length: 50 mm Head length: 6.1 mm Shank diameter: 6 mm Number of cutting edges: 3 Material: High-Speed Steel (HSS) Standard: DIN 335 C Shank tolerance: h9 Cutting direction: Right Compatibility and accessories Compatible with standard drill chucks that accept 6 mm shank bits Other types and coatings available upon request, including MTS, 60°, 82°, and 100° angles, and coated variants Installation Insert the shank into a compatible drill or milling machine chuck Ensure the bit is securely tightened before use Usage Use for producing conical seats for countersunk screws in soft and machinable materials Operate at appropriate speeds for the material and diameter Apply steady pressure to achieve

Amazon

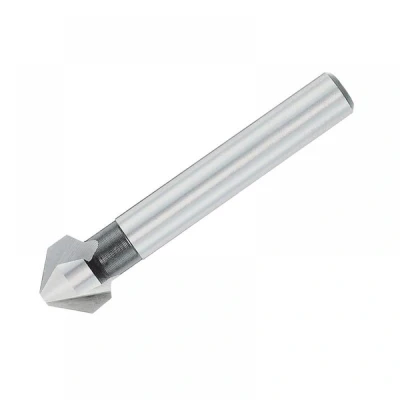

93 Degree Angle - Designed to chamfer holes to accommodate standard fasteners with 90 degree heads Premium HSS material - Can be used for chamfering holes in many materials including steels, aluminium, stainless steel Reduced plain shank - Allows large diameter countersinks to be held in standard holders and chucks Bright finish - Prevents work piece material from sticking to the cutting edge Versatile product - Can be used in both machine or hand held applications
