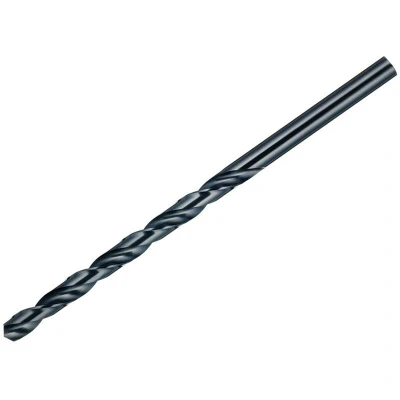

Dormer Long Series Drill, Pack of 10

General description The Dormer A110 Metric Long Series Drill Bits are general-purpose long reach drills, ideal for drilling deep holes in a wide range of materials. They are suitable for both hand and machine use. Technical specifications Material: High-Speed Steel (HSS) Type: DIN 340, Type N Tip diameter: 3.2 mm Overall length: 106 mm Cutting length: 69 mm Point angle: 118° Shank: Cylindrical Depth of drilling: 6 times the diameter (6xD) Cutting direction: Right-hand Nominal tolerance: h8 Compatibility and accessories Compatible with steel and cast iron Suitable for drilling bushings and deep holes Installation Insert the drill bit into a compatible drill chuck, ensuring a secure fit on the cylindrical shank. Usage Use with appropriate drilling machines for steel and cast iron. Ensure proper speed and feed rates to achieve optimal results and prolong tool life.

The Dormer A110 Metric Long Series Drill Bits is a general purpose long reach drill. Ideal for drilling deep holes in a wide range of materials and are suitable for both hand and machine use. Manufactured to: DIN 340RN/BS328/ISO 494.Tip diameter: 3.2mm.Working length: 69mm.Overall length: 106mm.PTDDORLS320
