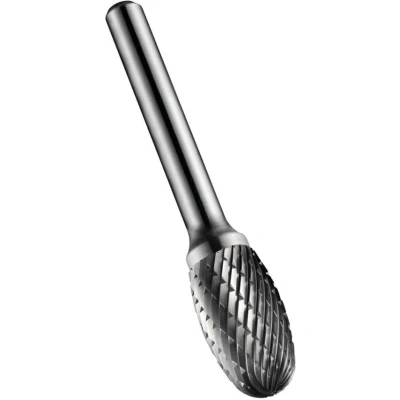

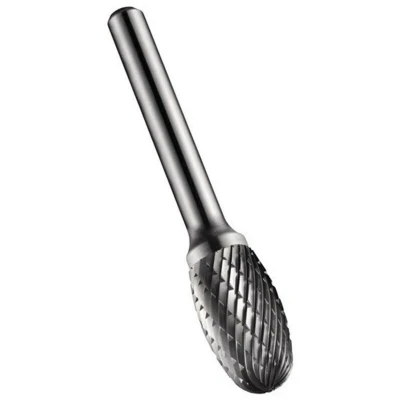

Dormer Solid Carbide Rotary Bright Burr Oval 6 x 6mm DOR809606

General description This is a high-quality oval-shaped milling cutter with a diameter of 6 mm and a cutting length of 10 mm. Made entirely of tungsten carbide with a polished surface, it features double-sided cutting with closely spaced teeth designed for shaping rounded edges in steel, cast iron, copper, and heat-resistant alloys. Suitable for machining hardened materials and high-resistance alloys. Technical specifications Diameter: 6 mm Cutting length: 10 mm Total length: 50 mm Shank diameter: 6 mm Material: Tungsten carbide Surface finish: Polished Cutting type: Double-sided with close teeth Compatibility and accessories Compatible with standard milling machines and tools that accept 6 mm shank cutters Suitable for use with steel, cast iron, copper, and heat-resistant alloys Installation Insert the cutter into the machine's collet or chuck ensuring it is securely tightened Check that the cutter is properly aligned before operation Usage Use appropriate cutting speeds and feeds

The Dormer P809 Solid Carbide Bright Rotary Burr with oval ball nose geometry for skip flute grinding and increased strength at the centre. With a reduced chance of swarf congestion and improved cutting action closer to the centre. Produces double cuts making it a good first choice for general machining. With an improved ease of control increased metal removal rate and breaks swarf into manageable pieces. They have toughened and hardened steel shanks that provide rigidity and strength. This prevents bending and reduces vibrations for an improved tool life. Ground to h6 (Carbide) and h7 (Steel). Excellent impact strength that is able to withstand high forces and to withstand higher temperature without failing. Special brazing elements provide excellent braze strength.The Dormer Solid Carbide Rotary Bright Burr Oval has the following specification: Diameter: 6mm.Shank Diamter: 6mm.Working Length: 10mm.Overall Length: 50mm.PTDDOR809606
