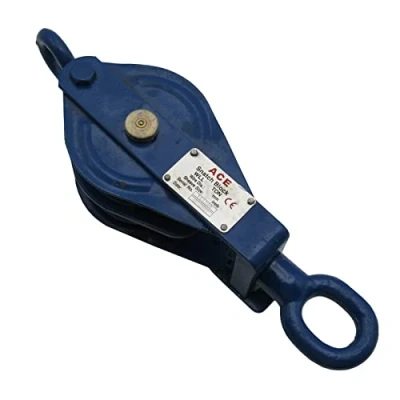

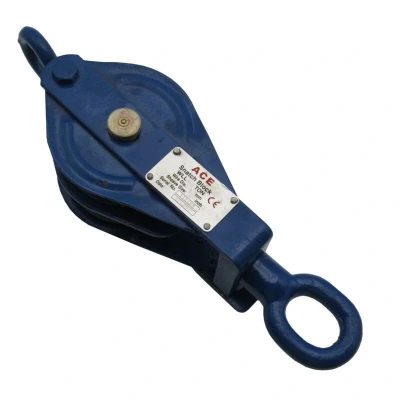

Double Sheave Snatch Block with Swivel Eye 1 Ton 100MM 10MM Wire (Rope Pulley Safety Lifting)

ManoMano

Double Sheave Snatch Block With Swivel Eye Safe Working Load - 1 Ton Suits Wire Rope - 10MM Finish - Blue Painted Factor Of Safety - 4:1 Conforms To: BS EN 13157: 2004 + A1: 2009 Product Code Safe Working Load A(MM) B(MM) C(MM) D(MM) E(MM) F(MM) G(MM) SFSNBED075 0.5 Ton 280 75 80 20.5 87 33 22.5 SFSNBED100 1 Ton 325 100 91 20.5 112 37 27 SFSNBED125 1.5 Ton 395 125 117 27 140 42.5 30 SFSNBED150 2 Ton 445 150 128 27 165 51.5 34.5 SFSNBED180 3 Ton 545 180 138 30 205 67 41 SFSNBED250 5 Ton 720 250 205 27.5 270 73.5 49 Pulley Blocks Are Used For Various Lifting And Towing Applications. These Can Also Be Used For Re-Directing Rope. This Particular Model Is A Double Sheave And Comes With A Swivel Eye. This Block Is For Use With 10MM Wire Rope. This Model Comes With A Built In Becket. This Snatch Block Has A Gate On The Side Which Allows The Rope To Be Put Directly Onto The Sheave, This Avoids The Need Of Having To Thread The Entire Length Of Rope. Test Certificate Included (Sent via eMail)

Amazon

A = 325MM B = 100MM C = 91MM D = 20.5MM E = 112MM F = 37MM G = 27MM Capacity - 1 Ton Suits Wire Rope - 10MM Finish - Blue Painted Conforms To: BS EN 13157: 2004 + A1: 2009, Manufacturer: SecureFix Direct
