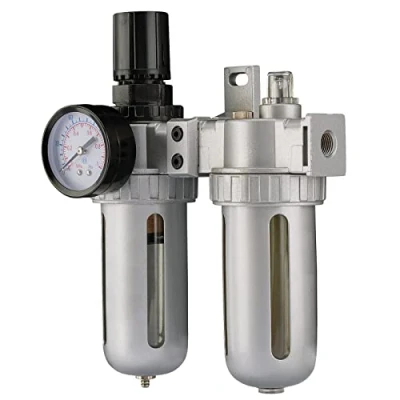

Draper 1/4" BSP Combined Filter/Regulator/Lubricator Unit

ManoMano

General description This is a high-quality air regulator designed to control output air pressure, remove moisture and contaminants from airflow, and lubricate tools during operation. It features a durable aluminium body with a polished silver finish and a steel gauge for precise pressure measurement. Technical specifications Inlet/outlet thread: 1/4" BSP Maximum inlet pressure: 145 psi Working temperature range: 5-60°C Filtration element: 40 microns Dimensions: 214 x 170 x 97 mm Weight: 0.98 kg Compatibility and accessories Compatible with standard pneumatic tools and air systems Includes a steel gauge marked with psi and MPa for accurate pressure readings Supplied with a wall bracket for easy installation Installation Install the regulator between the air supply and tools using the 1/4" BSP inlet and outlet threads Mount the unit securely on a wall using the included bracket Ensure proper sealing to prevent leaks Usage Adjust the pressure using the gauge to the desired level for your

Amazon

Steel screw-on bowl 1/4" BSP threaded 40-micron filter 145psi, Weight: 2.3920155427 Pounds, Manufacturer: Draper
