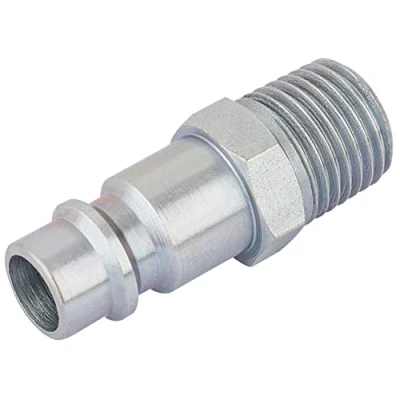

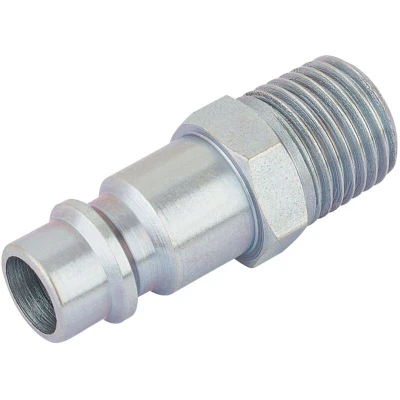

Draper 1/4" BSP Male Nut PCL Euro Coupling Adaptor (Sold Loose)

ManoMano

General description This heavy-duty high-flow connector is designed for demanding applications, offering reliable performance and durability. It has been tested to withstand over one million cycles, ensuring long-lasting use. Made from zinc-passivated steel, it provides enhanced corrosion resistance and is built for tough environments. Technical specifications Flow capacity at 6 bar inlet and 0.5 bar pressure drop: 78 cfm (2200 L/min) Maximum working pressure: 500 psi (35 bar) Test pressure: 725 psi (50 bar) Maximum burst pressure: 2030 psi (140 bar) Temperature range: -40°C to 100°C Nominal flow diameter: 7.4 mm Compatibility and accessories Compatible with most popular European and international adaptor profiles such as Cejn and Rectus Sold loose without additional accessories Installation Connect the fitting to compatible hoses or equipment by attaching it securely to the adaptor profile Ensure proper sealing and tightening to prevent leaks No special tools are required beyond

Amazon

Size: 1/4" Flow capacity at 6 bar inlet Max. working pressure 500psi Test pressure 725psi Max. burst pressure 2030psi, Weight: 2.20462262 pounds, Manufacturer: Draper

Electrical World

For heavy duty high flow applications
