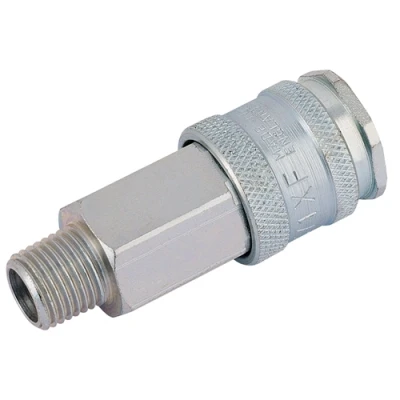

Draper 1/4" BSP Parallel Euro Coupling Male Thread (Sold Loose)

ManoMano

General description This is a heavy-duty Euro coupling designed for high flow applications. It features a male 1/4" BSP parallel thread and is tested to withstand over 1 million cycles, ensuring durability and reliability. The coupling connects to most popular European adaptor profiles such as Cejn and Rectus. Made from hard-wearing steel and zinc passivated to significantly improve corrosion resistance, it is suitable for demanding industrial use. Technical specifications Flow capacity at 6 bar inlet with 0.5 bar pressure drop: 78 cfm (2200 L/min) Maximum working pressure: 500 psi (35 bar) Test pressure: 725 psi (50 bar) Maximum burst pressure: 2030 psi (140 bar) Temperature range: -40°C to 100°C Nominal flow diameter: 7.4 mm Compatibility and accessories Connects to most European and popular adaptor profiles such as Cejn and Rectus Installation Connect the coupling to compatible hoses or fittings with a 1/4" BSP parallel thread Usage Designed for heavy-duty, high-flow applications

Electrical World

For heavy duty high flow applications
