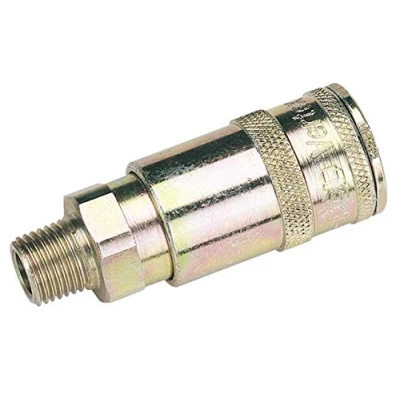

Draper 1/4" BSP Taper Male Thread Vertex Air Coupling

The Vertex Coupling Body 1/4"M - 51402 is a coupling designed for use with standard BSP taper adaptors. It incorporates a double action mechanism that prevents accidental disconnection, increasing reliability in trailing hose applications. This coupling is suitable for equipment that requires secure, continuous air flow while reducing the risk of unintended decoupling. It is specified for standard BSP taper connections and provides clear indications of its compatibility and intended use. With a maximum airflow rate of 1197 L/min (42 CFM) at 6.9 bar (100 psi) and a maximum working pressure of 13.8 bar (200 psi), the unit balances performance with safety for demanding pneumatic setups. The part number PTDDRPDIR51402 identifies this specific model.”

Features

• Double action mechanism prevents accidental disconnection
• Suitable for trailing hose applications
• For use with standard BSP taper adaptors
• BSP taper connection
• Part number PTDDRPDIR51402

Technical specifications

• Max airflow: 1197 L/min (42 CFM) at 6.9 bar (100 psi)
• Max working pressure: 13.8 bar (200 psi)
• Connection: BSP taper (standard adaptor use)
