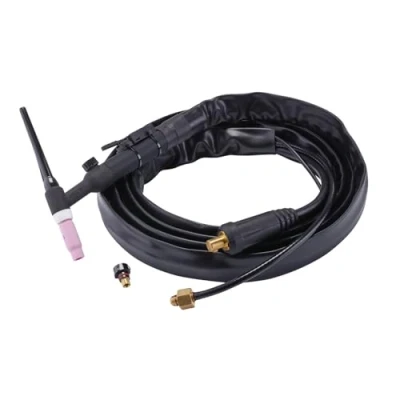

Draper Air Cooled TIG Welding Torch, 4m, Dinse Type 35/50

ManoMano

General description This TIG welding torch features a 35-50 DINSE type plug and a 3/8" BSP fitting, making it compatible with various welding setups. It is lightweight, durable, and air cooled, with rubber head mouldings that provide enhanced heat resistance. The torch comes with a 4-meter cable, offering flexibility during welding tasks. It is suitable for TIG welding applications up to 250A and includes essential accessories such as a 1.6mm collet, a 1.6mm collet body, and a 10mm (No.6) ceramic. Technical specifications Type: TIG welding torch Plug: DINSE 35-50 Fitting: 3/8" BSP Cable length: 4 meters Maximum current: 250A Cooling: Air cooled Materials: Rubber head mouldings for heat resistance Compatibility and accessories Compatible with TIG welding equipment that accepts DINSE 35-50 connectors Supplied accessories include: 1.6mm collet 1.6mm collet body 10mm (No.6) ceramic Installation Connect the torch to your TIG welding power source using the DINSE 35-50 plug Attach the 3/8"

Electrical World

Collets and collet bodies hold and position the tungsten electrode in a TIG torch body. The 1.6mm collet bodies in this pack of three are for use with the Dinse Type 35–50 Air Cooled TIG Welding Torch, 4m (Stock No. 70087) and the TIG Welding Torch for All Draper Inverter/Welders (Stock No. 57096).

Amazon

35-50 dinse type plug 4m cable Suitable for TIG welding up to 250A Draper 12 months parts and labour warranty, Weight: 4.92071768784 pounds, Manufacturer: Draper
