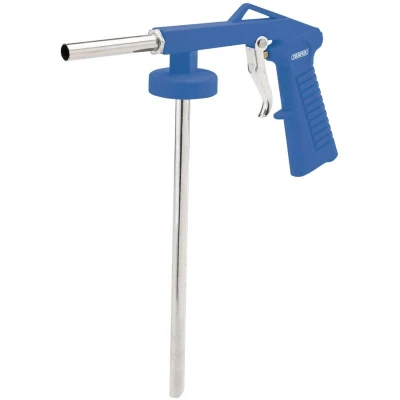

Draper Air Operated Underbody Coating Gun 13198

This air-powered underbody coating gun is designed for automotive and industrial applications, offering a robust and lightweight solution for rustproofing as well as applying primer and sub-coat paints from most 1L coating tins. Constructed from aluminium, it combines durability with ease of use for extended handling. The tool is compatible with most 1L coating tins and comes supplied with a 1/4" BSP air inlet adaptor, enabling connection to standard air systems. Specifications include an air inlet of 1/4" BSP, rated pressure between 30 and 120 psi (maximum 150 psi), air consumption of 270 L/min, and a recommended operating pressure of 2–4 bar. With a weight of approximately 0.29 kg, it is designed to be portable and practical for various automotive and industrial tasks, including rustproofing, underbody protection, and primer or sub-coat applications. The gun emphasizes robust construction and versatile connectivity, ensuring reliable performance across different coating tins and setup configurations.

Features

• Air-powered underbody coating gun
• Rustproofing and primer/sub-coat paints
• Accepts most 1L coating tins
• Lightweight aluminium construction
• Supplied with 1/4" BSP adaptor
