Draper Beam Clamp, 2 Tonne

ManoMano

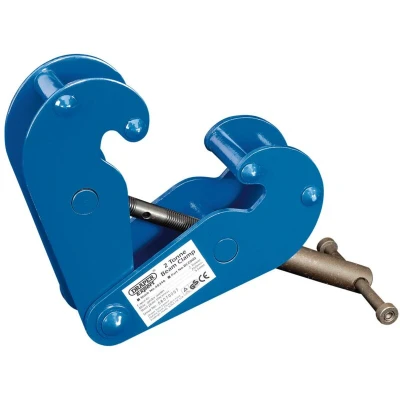

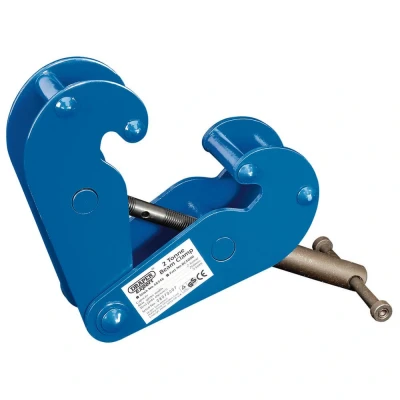

General description This high-quality steel lifting clamp is designed for semi-permanent attachment to steel RSJs, serving as a secure lifting point for chain blocks, hoists, and lifting tackles. It is suitable for lifting and transferring steel beams and can also be used as a pulling clamp. The clamp is tested and certified for safety and reliability. Technical specifications Safe Working Load (S.W.L.): 2 tonnes Girder beam width: 75-260mm Overall width (beam clamp): 180-360mm Clamp depth: 74mm Steel plate thickness: 6mm Compatibility and accessories Compatible with steel RSJs and beams within specified dimensions Includes a test certificate for safety assurance Installation Designed for semi-permanent attachment to steel RSJs Ensure proper positioning and secure fastening before use Usage Use as a lifting point for chain blocks, hoists, and lifting tackles Suitable for lifting and transferring steel beams Can be used as a pulling clamp for steel structures Other information Carton

Electrical World

Expert Quality, for semi - permanent attachment to steel RSJ's to act as lifting point for chain blocks, hoists and lifting tackle. Can also be used for the lifting and transfer of steel beams and as a pulling clamp. Test certificate included. Carton packed.
