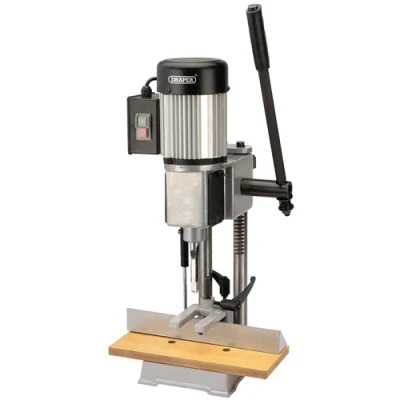

Draper Bench Morticer, 1/2", 370W

ManoMano

General description This is a versatile workshop mortising machine suitable for various woodworking tasks. It features a fully adjustable fence and workpiece holder for precise positioning. The powerful induction motor allows for a morticing capacity of up to 1/2 inch, making it ideal for heavy-duty applications. Technical specifications Speed: 1400 rpm Chisel capacity: 12.7 mm (1/2 inch) Chuck capacity: 13 mm Maximum chisel stroke: 76 mm Maximum clamping height: 90 mm Fence to chisel center distance: 84 mm Table size: 150 x 340 mm Base size: 190 x 255 mm Weight: 27 kg Compatibility and accessories Compatible with standard mortising chisels up to 1/2 inch Supplied accessories include: - Depth stop - Work clamp - Three-piece chisel set (1/4", 3/8", 1/2") - Chisel reducing adaptors - Chuck - Key Installation Ensure the machine is placed on a stable, flat surface Attach the fence and workpiece holder securely Install the appropriate chisel and bit according to the task Usage Adjust the

Electrical World

For general workshop use. Fully adjustable fence and workpiece holder. Powerful induction motor provides a morticing capacity of 1/2". Supplied with depth stop, work clamp, 3 piece chisel set (1/4", 3/8", 1/2"), chisel reducing adaptors, chuck and key. Display carton.
