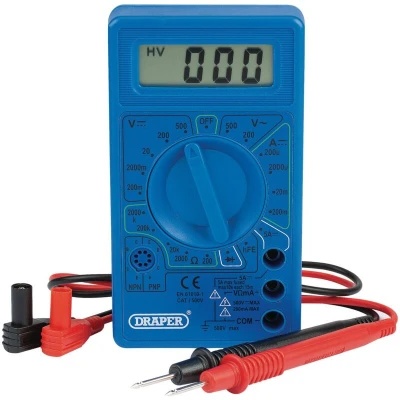

Draper Digital Multimeter

ManoMano

General description This digital multimeter measures AC and DC voltage, DC current, and resistance. It features a 20-position rotary switch for selecting measurement ranges and includes a battery check function. Compact and easy to use, it is suitable for various electrical testing tasks. Technical specifications DC voltage measurement: 200mV, 2000mV, 20V, 200V, 500V (accuracy ±5%) AC voltage measurement: 200V, 500V (accuracy ±5%) DC current measurement: 200μA, 20mA, 200mA (accuracy ±5%) Resistance measurement: 200Ω, 2000Ω, 20kΩ, 200kΩ, 2000kΩ (accuracy ±1.5%) Size: 70 x 24 x 126mm Weight: 150g Battery: 1 x PP3 Compatibility and accessories Includes test probes Includes leads Includes a battery for immediate use Installation Insert the appropriate test probes into the multimeter's input jacks Insert a fresh PP3 battery if needed Usage Turn the rotary switch to the desired measurement function and range Connect the test probes to the circuit or component to be tested Read the

Electrical World

Measures AC/DC voltage, DC current and resistance with 20 position rotary function and range selector. Battery check facility. Test probes, leads and battery included. Display packed.
