Draper Expert 50 160mm Bore Gauge Set (Model 2753) for Precise Internal Diameter Measurement

This bore gauge set is an essential tool designed for precise measurement of internal diameters, tapers, and ovality in a variety of mechanical and engineering applications. With its high accuracy and reliability, it is ideal for both professional and DIY use.

Product Features

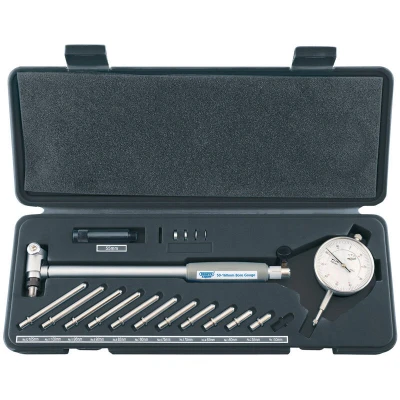

Equipped with a comprehensive range of components, the bore gauge set includes:

- 12 measuring rods with a measurement range of 50mm to 105mm

- 4 spacer rings (0.5mm, 1.0mm, 2.0mm, and 3.0mm)

- 1 precision dial test indicator with a travel of 3mm

- A 55mm extension bar for added versatility

With an accuracy level of 0.01mm, this gauge set ensures that minute variations in bore dimensions can be detected effectively. This precision makes it a reliable choice for tasks requiring meticulous attention to detail, such as quality control in a workshop or mechanical engineering environments.

Build Quality

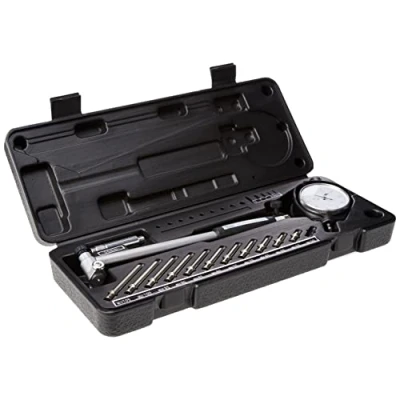

Manufactured with expert quality standards, the bore gauge set is constructed to endure the demands of rigorous usage while providing consistent results. The components fit seamlessly within the storage case, ensuring everything is well-organised and protected during transport. Weighing just 2.2 pounds, the set is lightweight yet robust, making it ideal for mobile professionals who need reliable measurement tools on the go.

Setup and Usage

Using the bore gauge set is straightforward. To begin, users assemble the measuring rods and spacer rings according to their specific measurement requirements. The dial test indicator is attached to the gauge body and, importantly, the gauge needs to be calibrated and zeroed before initiating any measurements. Once set up, the tool can be easily inserted into a bore to obtain precise readings.

Versatility

This bore gauge set is compatible with various internal diameter measurements, making it suitable for a broad spectrum of applications in mechanical and engineering fields. Whether for measuring bearings, automotive components, or other cylindrical parts, this tool is designed to deliver consistent and accurate measurements.

In summary, the bore gauge set is a professional-quality measuring tool that adeptly detects bores, tapers, or ovality with remarkable accuracy. Housed in a convenient storage case, it combines functionality, portability, and precision—an indispensable asset for any technician or hobbyist engaged in detailed measurement tasks.
