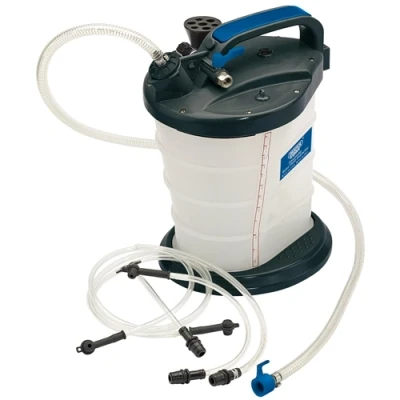

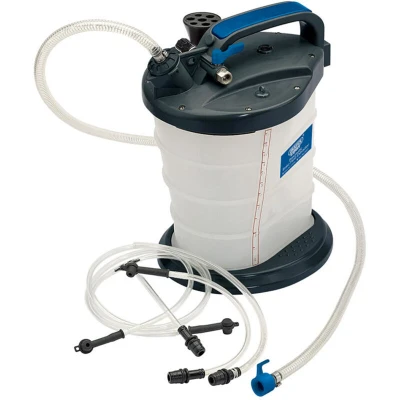

Draper Pneumatic Brake Fluid Extractor

General description This professional-grade Draper 77056 Pneumatic Brake Fluid Extractor is designed for one-person operation, making brake fluid removal quick and efficient. It is especially suitable for hydraulic systems with complex ABS configurations, utilizing a compressed air supply for optimal performance. The waste fluid tank is made from translucent, hydrocarbon-resistant plastic, allowing easy monitoring of fluid levels. Technical specifications Reservoir capacity: 5 liters Air inlet size: 1/4 inch BSP Suction tube pressure: 0.8 MPa Weight (empty): 2.9 kg Compatibility and accessories Compatible with hydraulic brake systems, including those with ABS Includes a 1.5-meter metal sprung suction tube Supplied with three extraction straws and a double adaptor for twin disc motorcycles Installation Connect the extractor to a compressed air supply via the 1/4 inch BSP inlet Attach the appropriate extraction straw or double adaptor based on the motorcycle or vehicle system Ensure the
