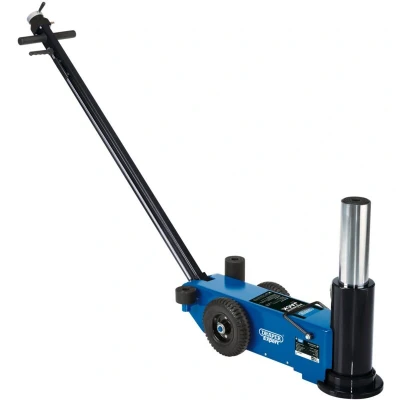

Draper Pneumatic High Lift Jack, 30 Tonne

ManoMano

General description This high-lift pneumatic jack is designed for professional and heavy-duty use, capable of lifting up to 30 tonnes (30,000 kg). It is portable, compact, and built with durability and safety in mind. The jack features an ergonomic handle with a Slow Down valve and a Self-Return switch for ease of operation and increased safety. It is suitable for lifting vehicles, machinery, or heavy equipment in garages, workshops, or industrial settings. Technical specifications Capacity: 30 tonnes (30,000 kg) Minimum height: 360 mm Maximum height: 772 mm (with extensions) Lift height: 267 mm Operating air pressure: 9 – 12 BAR (130 – 174 psi) Air consumption: 11.5 cfm Air inlet: 1/4 BSP Wheel diameter: 200 mm Wheel width: 55.5 mm Saddle diameter: 83.6 mm Extensions included: 45 mm and 100 mm Handle length: 1380 mm Chassis size: 840 x 215 x 360 mm Nett weight: 87 kg Compatibility and accessories Compatible with standard pneumatic air supply systems Supplied with 45 mm and 100 mm

Electrical World

Expert Quality, portable and compact high lift pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 100mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.

Amazon

Single stage high lift pneumatic jack Agriculturally focused Ergonomic handle grips ‘Slow Down’ valve Draper 3 year warranty, Weight: 206.352677232 pounds, Manufacturer: Draper
