Draper Precision Mitre Saw, 550mm

ManoMano

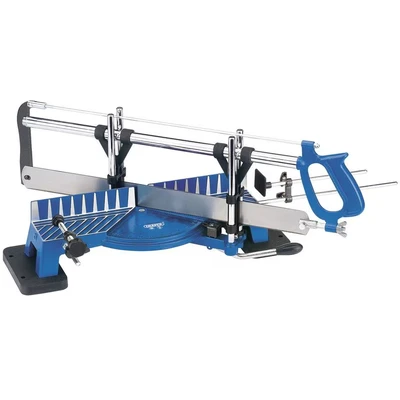

General description This Draper 550mm Precision Mitre Saw (Model 88192) is designed for accurate crosscuts and miter cuts, making it ideal for detailed woodworking tasks such as cutting picture frames and architraves. It features a sturdy diecast aluminium saw table and a comfortable plastic handle for ease of use. Technical specifications Blade length: 550 mm Blade width: 45 mm Table length: 400 mm Maximum cutting width at 45°: 115 mm Maximum cutting width at 90° (clamped): 125 mm Maximum cutting width at 90° (unclamped): 170 mm Maximum cutting height: 100 mm Maximum reach of adjustable stop: 440 mm Gross weight: 8.5 kg Compatibility and accessories Suitable for cutting picture frames, architraves, and similar materials Includes a 14 TPI wood cutting blade Additional material vice clamp for short workpieces Installation Set up the saw on a stable, flat surface Attach the guide rods and adjustable stop as per the instructions Secure the workpiece using the vice clamps before cutting

Electrical World

Workshop saw for the accurate cutting of various angles or mitres on picture frames, architraves, etc. Comprising saw with plastic handle, 14 tpi wood cutting blade, solid one piece diecast Aluminium saw table, four solid chrome plated guide rods with adjustable length stop, material vice clamp, extra material vice clamp for use with short workpieces, cutting depth regulator and scale on base. Display carton.
