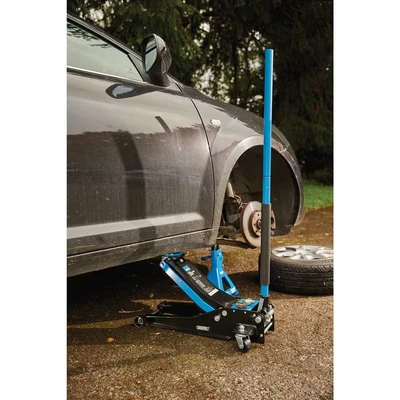

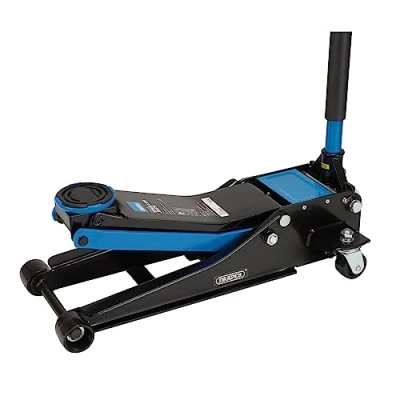

Draper Trolley Jack, 3 Tonne, Blue

This low profile trolley jack is an essential tool for any automotive enthusiast or professional mechanic. With a lifting range of 75-505mm and a robust capacity of 3 tonnes, it is designed to handle a variety of vehicles with ease and efficiency.

<a class='cat-link' href='https://bigshopper.co.uk/brand/quick/'>Quick</a> Lift Mechanism

Featuring a twin-piston pump, this trolley jack allows for rapid lifting. With just eight pumps, you can reach the maximum height efficiently, making it ideal for time-sensitive jobs. The twin spring return system ensures that the jack lowers safely when not under load, providing peace of mind during use.

Safety Features

Safety is paramount when working with heavy equipment. This trolley jack is equipped with a twin safety valve that prevents overload, ensuring that the jack operates within its limits. Additionally, the integrated rubber saddle pad protects the underside of the vehicle from potential damage during operation, allowing for a reliable lifting solution without compromising the integrity of your vehicle.

Design and Usability

Designed with a low profile, this trolley jack is perfect for vehicles with minimal ground clearance. It features a comfortable EVA foam handle cover to prevent damage to vehicle panels during operation. The knurled handgrip at the end of the lifting arm provides a secure hold, enhancing user control and comfort.

Maneuverability and Durability

When it comes to mobility, the trolley jack excels. It is fitted with hardwearing nylon wheels and rear swiveling castors, allowing for smooth and quiet movement across the garage floor. Not only do these wheels facilitate easy maneuvering, but they also prevent damage to your garage surfaces.

Technical Specifications

- Capacity: 3 tonnes

- Lifting Range: 75-505mm

- Chassis Length: 738mm

- Handle Length: 1,145mm

- Max Height: 505mm

- Min Height: 75mm

- Saddle Diameter: 110mm

- Weight: 35kg

- Dimensions: Length: 805mm x Height: 205mm

- Colour: Blue

Warranty

To ensure quality and reliability, this trolley jack comes with a 12-month parts and labour warranty. Manufactured to meet EN 1494 specifications, you can be confident in the performance and durability of this tool.

Whether you're performing routine maintenance, changing tires, or undertaking more significant repairs, this low profile trolley jack is an excellent addition to your toolkit, combining efficiency, safety, and ease of use.
