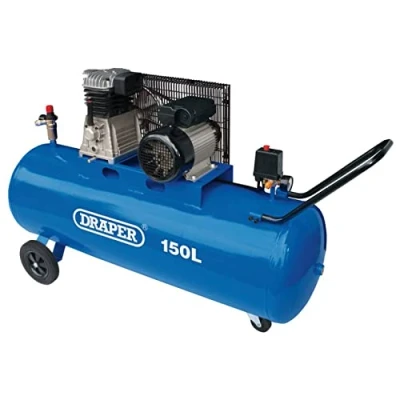

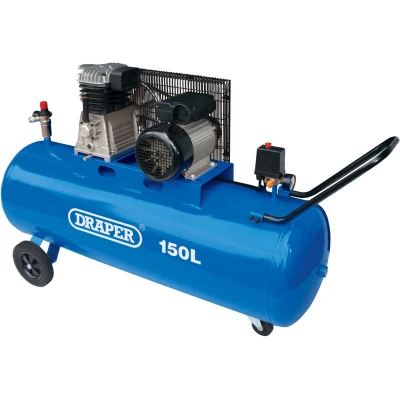

Draper Wheeled Belt Driven Air Compressor, 150L, 2.2kW

ManoMano

General description This is a high-capacity belt-driven air compressor suitable for workshop use. It features thermal motor protection overload, an on/off pressure switch, pressure regulator, and a pressure gauge for precise control. The compressor is equipped with rubber wheels and a transport handle for easy mobility, and it has a quick euro coupling outlet for efficient air connection. Technical specifications Tank size: 150 liters Motor power: 2.2 kW (3.0 HP) Air displacement: 13.03 CFM (369 L/min) Free air delivered (FAD): 8.44 CFM (239 L/min) Input current: 13A Speed: 1100 rpm Maximum pressure: 145 psi (10 bar) Dimensions: 1280 x 480 x 950 mm Weight: 102 kg Compatibility and accessories Compatible with standard air tools and accessories that use euro couplings Installation Place the compressor on a stable, level surface in a well-ventilated area Connect air hoses to the quick euro coupling outlet Ensure electrical connections comply with local safety standards Usage Switch on

Electrical World

Features: Belt - driven, Suitable for workshop use, Thermal motor protection overload, on/off pressure switch, pressure regulator and pressure gauge, Rubber wheels and transport handle,, Quick euro coupling outlet
