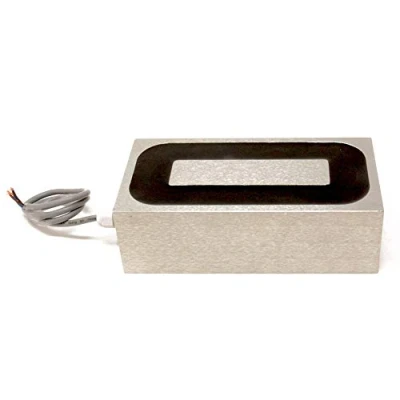

Electromagnet with 10mm Mounting Hole for Door and Hatch Mechanisms, Automated Assembly Lines, Robotics, Lifting Handling Ferrous Materials 203.2 x 101.6 63.5mm thick 907kg Pull

EASY LIFTING & HOLDING. Easy to use electromagnet for lifting and holding applications such as assembly lines, door & hatch mechanisms and robotics. POWER SOURCE REQUIRED. These magnets require a power source; when electricity is passed through them they produce a strong magnetic field and when the power is removed, the magnetic field disappears instantly. SPECIFICATION. 203.2mm x 101.6mm x 63.5mm thick. Zinc Plated Mild Steel. Supplied with 10mm mounting hole on the reverse for fixing and mounting. Operating voltage 110V DC / 42W, power source not included. SUPPLIED WITH WIRE. Each magnet is supplied with approximately 605mm of wire for connecting to a direct current (DC) power source. SAFE WORKING LIMIT. Each magnet has a safe working limit (SWL) of up to 907kg in a vertical direct position when electricity is applied
