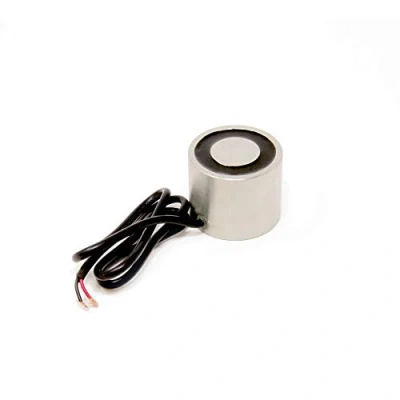

Electromagnet with 6mm Mounting Hole for Door and Hatch Mechanisms, Automated Assembly Lines, Robotics, Lifting Handling Ferrous Materials 50.8mm dia x 41.275mm thick 100kg Pull 12V DC/5.2W

EASY LIFTING & HOLDING. Easy to use electromagnet for lifting and holding applications such as assembly lines, door & hatch mechanisms and robotics. POWER SOURCE REQUIRED. These magnets require a power source; when electricity is passed through them they produce a strong magnetic field and when the power is removed, the magnetic field disappears instantly. SPECIFICATION. 50.8mm diameter x 41.275mm thick. Zinc Plated Mild Steel. Supplied with 6mm mounting hole on the reverse for fixing and mounting. Operating voltage 12V DC / 5.2W, power source not included. SUPPLIED WITH WIRE. Each magnet is supplied with approximately 605mm of wire for connecting to a direct current (DC) power source. SAFE WORKING LIMIT. Each magnet has a safe working limit (SWL) of up to 100kg in a vertical direct position when electricity is applied. EXPERT ADVICE. After your purchase, our team of experts is always available to provide you with technical advice and support with your application.
