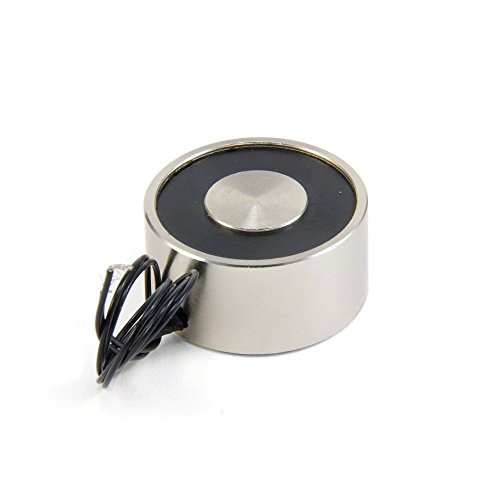

Electromagnet with M5 Mounting Hole for Door and Hatch Mechanisms, Automated Assembly Lines, Robotics, Lifting Handling Ferrous Materials 40mm dia x 20mm thick 25kg Pull 8W/0.33A

EASY LIFTING & HOLDING. Easy to use electromagnet for lifting and holding applications such as assembly lines, door & hatch mechanisms and robotics. POWER SOURCE REQUIRED. These magnets require a power source; when electricity is passed through them they produce a strong magnetic field and when the power is removed, the magnetic field disappears instantly. SPECIFICATION. 40mm diameter x 20mm thick. Zinc Plated Mild Steel. Supplied with an M5 threaded hole on the reverse for fixing and mounting. Operating voltage 24v DC / 8W, power source not included. SUPPLIED WITH WIRE. Each magnet is supplied with approximately 605mm of wire for connecting to a direct current (DC) power source. SAFE WORKING LIMIT. Each magnet has a safe working limit (SWL) of up to 25kg in a vertical direct position when electricity is applied
