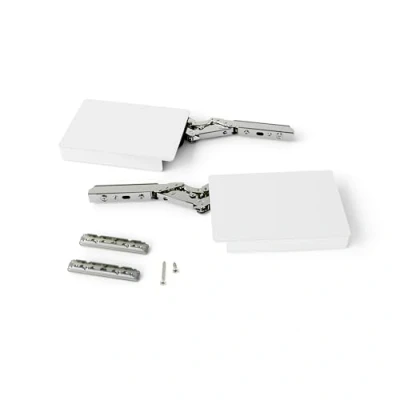

Emuca 1214815, White Spring Door Altius Lift, Force 560 1800 (Low=L), Steel and Plastic

Emuca Altius Lift 560-1800 Hinge. Elevate your furniture with the EMUCA Altius Lift hinge. This advanced, hingeless stay system offers seamless soft-close functionality and tool-free disassembly via its clip-on design. Enjoy adjustable opening angles (85°-100°) for optimal accessibility and interior space. The "Low" model is perfect for doors 250-800mm high and 16-22mm thick panels, handling forces from 560-1800. Fine-tune mechanism force, soft-close, opening angle, and door positioning (±2mm) for a flawless finish. Crafted from durable steel and plastic with a clean white look, it includes all necessary components for easy installation. - Stay system designed for hingeless lift-up doors, with soft-close and tool-free disassembly thanks to its clip-on system.- Adjustable opening angle from 85° to 100°, which facilitates accessibility and maximizes the internal space of the cabinet.- Low (L) model, compatible with doors between 250 and 800 mm in height and panels from 16 to 22 mm thick.Consult the selection table according to the door´s height and width to identify the appropriate model.This model is designed for required forces between 560 and 1800, calculated according to the corresponding formula.- Includes 4 adjustments: mechanism force, soft-close, opening angle, and three-dimensional adjustment of the door position ±2 mm.- Made of steel and plastic, white finish.The Altius Lift stay system for lift-up doors has been designed to provide an advanced solution for kitchen and home furniture.Thanks to its hingeless mechanism, this system allows for smooth and controlled movement, ideal for spaces where ergonomics and aesthetics are key.Altius Lift incorporates a soft-close system with force adjustment, as well as an adjustment for the door opening (between 85° and 100°), and a three-dimensional adjustment that allows for precise installation in all types of cabinets.It is compatible with doors from 250 to 800 mm in height, with panel thicknesses from 16 to 22 mm.Furthermore, it allows for quick, tool-free door disassembly using its clip-on system, which facilitates both installation and future maintenance.The product is available in four different forces to adapt to the weight and height of each door, using a specific calculation formula: F = H x (Door weight + 2 × Handle weight).F = Force.H = Door height in mm.Door weight = Door weight in Kg.Handle weight = Handle weight in Kg.It is supplied as a complete set that includes stays, brackets, cover caps, fixing screws, auxiliary supports, and necessary tools for quick and secure assembly.Components: 1 set of stays, 2 brackets, 2 cover caps, screws for fixing, auxiliary bit, 3 auxiliary mounting supports. tradeinn Bricoinn

Spring system designed for lift-up doors without hinges, with soft closing and tool-free removal thanks to its clip-on system. Adjustable opening angle from 85° to 100°, which facilitates accessibility and makes the most of the interior space of the module. Low (L) model, compatible with doors between 250 and 800 mm high and boards between 16 and 22 mm thick. Consult the selection table according to the height and width of the door to identify the appropriate model. This model is designed for forces between 560 and 1800, calculated according to the corresponding formula. CALCULATE THE COMPASS STRENGTH F = H x (Door weight + 2*Handle weight) F = Strength. H = Door height in mm. Door weight = Door weight in kg. Handle weight = Handle weight in kg. Includes 4 adjustments: mechanism force, soft closing, opening angle and three-dimensional adjustment of the door position ±2 mm. Made of steel and plastic, white finish.
