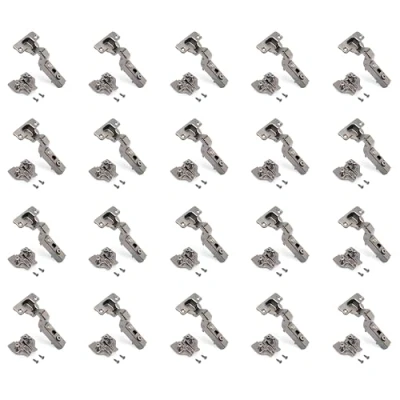

Emuca Kit of 20 Inset Overlay Hinge X91 with Soft Close and Plate Euro Screw, 105º Opening, Titanium, Steel

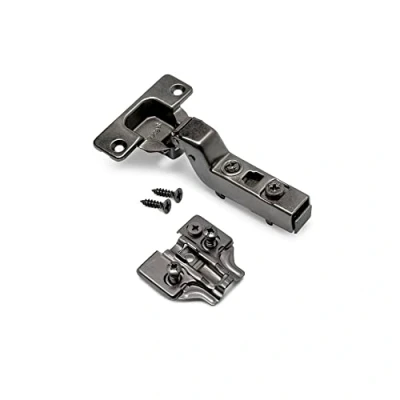

Inset overlay hinges X91. Fastening for screwing. Concealed hinge with a diameter of 35 mm. 105º Opening. @@@lxeBDMsKidpvflC7H5xb+YLuqQ566ZgM@@@ has a cushioning piston for soft closing of the door. Automatic system for clip assembly of the hinge to the plate. Door thickness of 14 to 24 mm. Can be adjusted three-dimensionally. Drilling range of the concealed hinge D = 3 ~ 7 mm. Depth adjustment via eccentric screw. Spring for both closing and opening. X91 Plate. Fastening with Euro D screw 5 x 12 mm. 0 mm Height. With eccentric adjustment. It includes the screws necessary for assembly. Made of titanium finished steel., Weight: 5.952481074 Pounds, Manufacturer: Emuca
