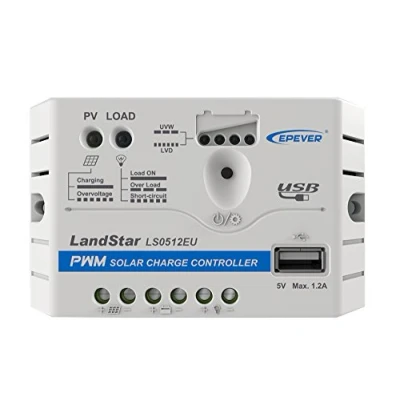

EPEVER® PWM Landstar EU Series Charge Controller LS 12V/24V with USB Connection (LS0512EU (5A, 12V))

Highlights: 3-stage intelligent PWM charging: Bulk, balance and float charging. Supports 3 battery types: liquid lead acid batteries, gel and AGM. Built-in USB power supply for your 5V consumers. Intelligent communication of the current battery situation via integrated LEDs. Protection from deep discharge. Load short circuit protection. Battery temperature compensation. Battery overload protection. Technical data: charging current: 5A. Max. PV voltage: 30V. Input voltage range: 8 V to 16 V. Grounding: positive. Operating temperature: -35 °C to +55 °C. Dimensions: 109.7 x 65.5 x 20.8 mm. Net weight: 101 g. Protection type: IP20.. Application: The multi-load control modes allow it to be widely used on home system, solar light system, road lighting, solar powered caravans and boats, small solar systems, etc. Certificates: CE, RoHS, FCC Warranty: 1 year warranty
