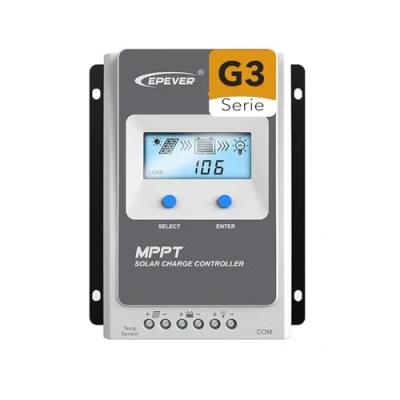

EPEVER Tracer 2210AN MPPT Charge Controller 20A Auto Work 12V/24V LCD Display Commen Negative Earth

The Tracer AN series is an updated version of the successful Tracer A series. With the advanced MPPT (Max Power Point Tracking) technology, the efficiency of energy conversion in the solar system is increased by 10% to 30%. The Commen-negative grounding is ideal for mobile homes, LCD display with backlight provides the relevant parameters. Ultra protection functions against PV overcurrent / power, PV short circuit, reversal of polarity, reverse charging at night, battery overvoltage, overdischarge and overheating, low temperature with lithium battery Important technical data: Nominal voltage: 12 / 24V DC Auto Max. PV input power: 260W / 12V 520W / 24V Nominal charge current: 20A Discharge current: 20A; Battery pole voltage: 8 ～ 32V; Max. PV open circuit voltage: 100V Operating temperature: -25 ° C to + 45 ° C Protection class: IP30 Dimensions: 220 * 154 * 52mm; Weight: 940g Suitable for open acid, AGM, gel and lithium-ion batteries Further monitoring - and setting options via MT50, eBox (Wifi, Bluetooth or eLog), PC communication cable
