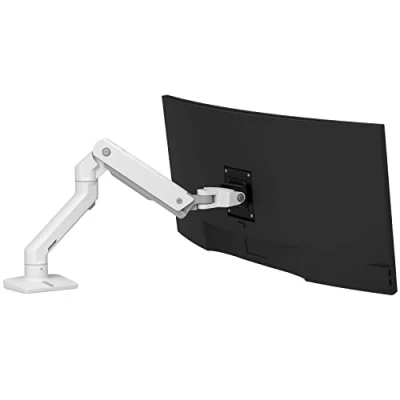

Ergotron HX desk Monitor Arm mounting kit (articulating arm, clamp mount, grommet pivot, hardware, extension part) for white screen size: up to 42" desktop

Ergotron Hx 42´´ Max Monitor Arm Mount 19.1kg. Effortlessly position large monitors (up to 42 lbs) with the ERGOTRON HX Desk Monitor Arm. Its patented Constant Force™ Technology provides smooth, easy adjustments for optimal ergonomics. Expand your setup with optional dual/triple bow kits. This sleek, space-saving mount features hidden cable management and BIFMA level® 2 certification for sustainability. Built for durability and thousands of movements, it´s the adaptable choice for any workspace. Includes desk clamp and grommet mount for versatile installation. Choose a monitor arm that's as adaptable as you. With the HX Desk Monitor Arm, you can easily reposition large monitors weighing up to 42 lbs (19.1 kg) using patented Constant Force™ Technology. It enhances your workspace with a sleek design, and an optional dual or triple monitor bow kit ups your screen count and productivity. It's BIFMA level® 2 certified based on the arm's low environmental and social impact.- HX Desk Monitor Arm - Includes arm, extension, monitor pivot, desk clamp, grommet mount, mounting hardware- Arm folds back over the base into a compact retracted position, perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas- Portrait/landscape rotation with lockout- Streamlined cable management routes cables under arm and within extension- Desk clamp attaches to surface edge 0.4´´ to 2.4´´ (1 to 6.6 cm) thick- Grommet mount attaches through surface holesFeatures:Comfortable fit:- Offers ergonomic monitor positioning using patented Constant Force™ TechnologyRotation stop:- Avoid hitting cube walls with a rotation-stop on the baseSaves space:- Places screen in the best view to tackle each to-doSleek build:- Cables stay hidden under the arm and through the extensionSustainable choice:- BIFMA level® 2 certified for a low environmental and social impactQuality design:- Built for thousands of movements by passing 10,000-cycle testSpecifications:- Screen: ≤49´´- Capacity: 20–42 lbs 9.1–19.1 kg §- Lift: 11.5´´ 29.2 cm- Tilt: 75° †- Pan: 180° *- Rotation: 360°- Weight Capacity: 20–42 lbs (9.1–19.1 kg). Note: Display depth > 6´´ (15 cm) may affect the arm's weight capacity. For a curved monitor, consider the arc's depth to determine compatibility. For a display weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6´´–12´´ (15–30 cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is required- To use an HX arm with the ultra-wide, curved Samsung 49´´ Odyssey G9 Monitor, also order the accessory HX Heavy-Duty Tilt Pivot (98-540-216)- * Monitor can be rotated 360° at connection point of arm and extension, rotation is restricted to 180° at connection point of extension and base- ‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm- † Tilt Range: 70° backward, 5° forward- This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)- Product Weight: 15.25 lbs (6.9 kg)- Shipping Dimensions: 12´´ x 19.2´´ x 7´´ (30.5 x 48.8 x 17.8 cm)- Shipping Weight: 18.3 lbs (8.3 kg)Technology:Constant Force™ Technology:More Motion. Less Effort. Feel the Difference:- Adjust with a touch Experience viewing comfort powered by Ergotron´s exclusive patented CF™ Technology. Easily position a monitor, TV, keyboard or even an entire workstation exactly where you need it.Environmentally Responsible:Reducing Our Footprint While Growing:- Our dedication to quality allows our company to reduce its environmental footprint, even while we grow, by using characteristic innovation and state of the art management practices to find efficiencies wherever possible. tradeinn Techinn

Support ultrawides: To use with the Samsung 49-inch Odyssey G9, the separate accessory HX Heavy Duty Tilt Pivot (98-540-216) is required; or choose the bundled solution that includes the HD Pivot in the box (45-647-224 or 45-647-216) Broad compatibility: Fits large, single screens up to 49 inches diagonal and 9.1.-19.1kg; compatible with VESA patterns 75x75mm, 100x100mm, 200x100mm and 200x200 mm; separate accessory VESA Bracket Adaptor Kit (97-759) fits larger VESA patterns Multiple mounting options: Includes arm, extension, monitor pivot, mounting hardware; two-piece desk clamp for surface edges 1 to 6.6 centimeters thick and grommet mount for installation through a surface hole Comfortable working: Offers full monitor motion with 29.2 centimeters of lift, screen rises 45.2 centimeters above your desktop; customize how you work or collaborate with 360 degrees of rotation and 75 degrees of tilt Stylish and functional: Sleek design with heavy duty capacity allows easy positioning of large monitors; low-profile clamp fits in tight spaces with cable management for a neat workspace; optional dual (97-783) and triple (98-009-026) monitor kits up your workstation’s screen count and productivity
