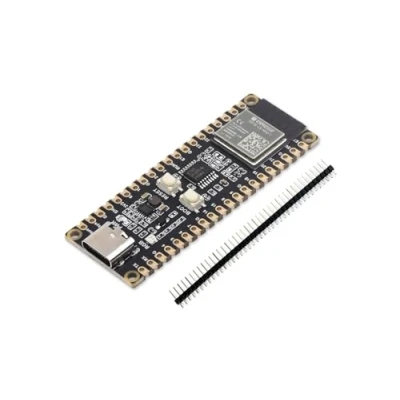

ESP32 C6 Microcontroller Development Board Integrated WiFi 6, BLE 5 and IEEE 802.15.4 (Zigbee 3.0&Thread), Adopt MINI 1 Chip, 160MHz Single core Processor, Support ESP IDF, Arduino

ESP32-C6 RISC-V microcontroller development board integrating WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread), compatible in size and interface with most of the Raspberry Pi Pico HATs, supports ESP-IDF, Arduino ESP32-C6 WiFi 6 development board adopts ESP32-C6-MINI-1 chip with RISC-V 32-bit single-core processor, capable of running at 160 MHz, Integrated 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 4MB flash, suitable for AIoT applications Onboard MP28164 high efficiency DC-DC buck-boost chip with load current up to 2A, ensuring the safety of the product 20 × multi-function GPIO pins and 7 × expanded IO pins, configurable pin function, allows flexible development and integration Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM, etc. to achieve various functions flexibly
