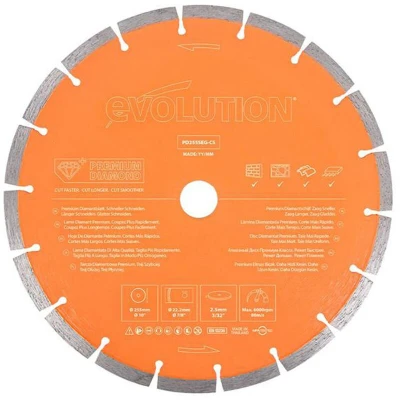

Evolution Power Tools General Purpose Diamond Blade 255mm x 22.2mm

The Evolution General Purpose Diamond Blade is designed for cutting a variety of hard materials, including masonry, brick, pavers, stone, concrete, and steel-reinforced concrete. Built for professional and DIY use, it delivers high performance and durability in demanding cutting tasks. The blade features a 255 mm diameter with a 22.2 mm bore, a 2 mm thickness, and 18 segments, each with a 2.5 mm tooth thickness and 10 mm tooth height. Its hot-pressed construction and higher diamond concentration are engineered to provide faster cutting and longer life compared to standard blades. Compatible with the R255DCT Concrete Cutting Saw, this blade is suited for aggressive cutting on hard and abrasive masonry while aiming to meet the needs of hardscapers and masons seeking reliable results across multiple materials.

Features

• Cuts masonry, brick, and pavers
• Cuts stone, concrete, and steel-reinforced concrete
• Hot-pressed diamond concentration delivers faster cutting
• Engineered for aggressive cutting on hard materials
• Compatible with R255DCT Concrete Cutting Saw

Technical specifications

• Diameter 255 mm
• Bore 22.2 mm
• Thickness 2 mm
• Segment/tooth thickness 2.5 mm
• Segment/tooth height 10 mm
• 18 segments/teeth
• Max speed 6,000 rpm

Ensure the saw is turned off and unplugged before installation. Align the blade bore with the saw arbor and secure tightly with the appropriate tool. Wear safety gear, including gloves and eye protection, and operate at the recommended maximum speed of 6,000 rpm. Cut steadily without applying excessive force to prolong blade life and ensure clean cuts.
