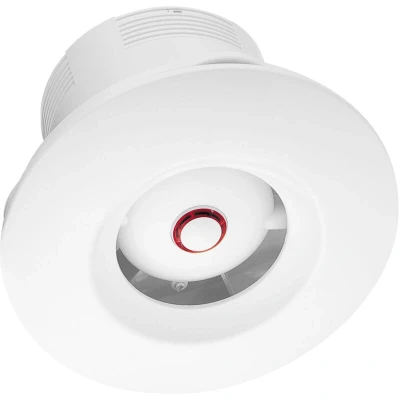

Extractor fan Orbit 100 t

ManoMano

General description The Orbit 100 T extractor fan is designed for efficient ventilation in various settings. Its compact design and powerful performance make it suitable for both residential and commercial applications. Technical specifications Voltage: 220-240 V ~ 50 Hz Housing colour: white Housing material: UV-resistant ABS Bearing type: ball bearings Nominal size: 100 mm Speed levels: 1 Wattage: 13 W Revolutions per minute: 2600 Airflow rate: 88 m³/h Sound pressure level Lp-3m: 38 dB(A) Total pressure Pmax.: 32 Pa IP rating: IPX4 Max. ambient temperature: +40°C Diameter front cover: 160 mm Diameter pipe connection: 100 mm Length pipe connection: 77 mm Total length: 103 mm Weight: 0.7 kg Other information Adjustable shut-off timer (3-30 min): fan turns off after expiration of the pre-set time Mounting options: ceiling, wall Application: direct connection to the ventilation shaft

Amazon

Ceiling fan With timer and ball bearings Ducting Size: 100mm Voltage: 240 V/50 Hz, consumption: 14 W, max. Flow rate: 90 m³/h, protection class: IP-X4, max. Noise level: 44 dB Dimensions: A - 154 mm, B - 154 mm, C - 139 mm, D - 139 mm, X - 160 mm, B - 103 mm, Z - 77 mm, O - 100 mm
