Extractor fan Orbit 125 r

ManoMano

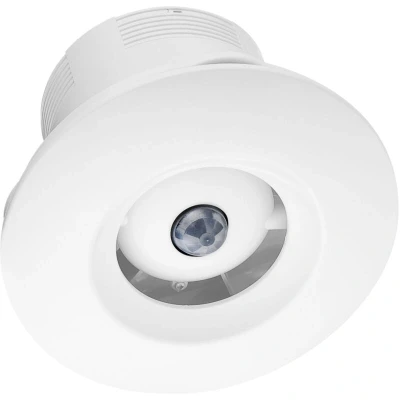

General description The Orbit 125 F extractor fan is designed for efficient ventilation in various settings. It features a sleek white housing made from UV-resistant ABS, ensuring durability and longevity. This fan operates quietly while providing effective airflow, making it suitable for both residential and commercial applications. Technical specifications Voltage: 220-240 V ~ 50 Hz Wattage: 17 W Speed levels: 1 Revolutions per minute: 2500 Airflow rate: 155 m³/h Sound pressure level Lp-3m: 43 dB(A) Total pressure Pmax.: 60 Pa IP rating: IPX4 Max. ambient temperature: +40°C Diameter front cover: 187 mm Diameter pipe connection: 125 mm Length pipe connection: 77 mm Total length: 107 mm Weight: 0.7 kg Compatibility and accessories Mounting options: ceiling, wall Application: direct connection to the ventilation shaft Installation Adjustable shut-off timer (3-30 min) Light sensor: Mode 1 automatic start upon detection of light and automatic shut-off after expiration of the pre-set time

Amazon

Ceiling fan With ball bearings and timer Ducting Size 150mm Voltage: 240 V/50 Hz, consumption: 20 W, max. Flow rate: 205 m3/h, protection class: IP-X4. A - 206 mm, B - 206 mm, C - 189 mm, D - 189 mm, X - 210 mm, B - 125 mm, Z - 83 mm.
