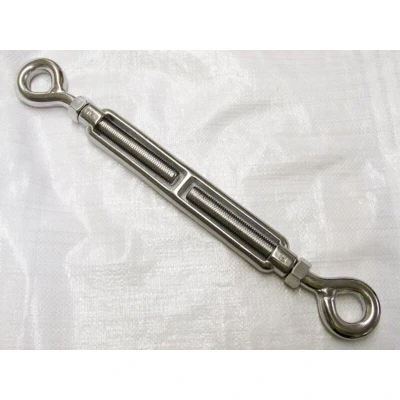

Eye Turnbuckle Stainless Steel M20 (30MM Eyes Open Body Straining Screw Rigging Tensioner)

General description Open Body Turnbuckles with Eye & Eye are versatile rigging tensioners suitable for various applications, including garden, marine, and sports industries. They can be used with a wide range of products such as rope, wire, rigging, and cables. Manufactured from 316 grade stainless steel, these turnbuckles offer excellent rust protection, making them ideal for marine environments. Technical specifications Thread Diameter: 20MM Eye Diameter: 30MM Breaking Load (KG) and dimensions: Code SFSSTEE04: Breaking Load 346 KG, A 4MM, B 65MM, C 6.5MM, D 97MM, E 141MM Code SFSSTEE05: Breaking Load 561 KG, A 4.8MM, B 77MM, C 8MM, D 119MM, E 170MM Code SFSSTEE06: Breaking Load 816 KG, A 5.3MM, B 98MM, C 10MM, D 154MM, E 225MM Code SFSSTEE08: Breaking Load 1550 KG, A 7.1MM, B 140MM, C 13MM, D 212MM, E 310MM Code SFSSTEE10: Breaking Load 2244 KG, A 8.8MM, B 162MM, C 16MM, D 247MM, E 354MM Code SFSSTEE12: Breaking Load 3213 KG, A 11.8MM, B 220MM, C 18MM, D 325MM, E 470MM Code

Can be used with a wide range of products including but not limited to rope, wire, and rigging A high quality, versatile piece of equipment that's popular in the Marine Industry Extremely durable and highly resistant to corrosion Breaking Load - 9373KG A (MM) - 18.1 B (MM) - 300 C (MM) - 28 D (MM) - 470 E (MM) - 718
