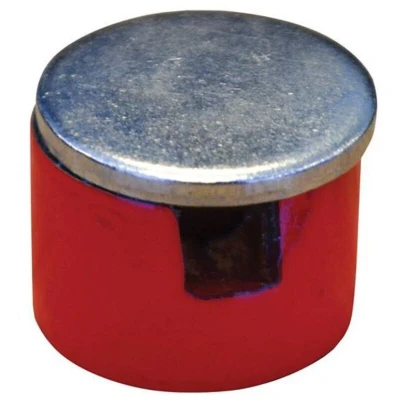

Faithfull Button Magnet 12.5mm Power 0.7kg FAIMAGBM125

General description The Faithfull Button Magnet is crafted from high-quality Alnico material, providing excellent resistance to corrosion and the ability to operate in high temperatures up to 500°C. With a compact diameter of 12.5mm and a height of 9.5mm, it features a pull force of 0.7kg, making it suitable for various applications. Technical specifications Diameter: 12.5mm Height: 9.5mm Pull Power: 0.7kg Material: Alnico Temperature resistance: up to 500°C Compatibility and accessories Includes mounting holes for easy installation Suitable for use in work holding, welding, sign making, and reed switch applications Installation Mount using the provided holes Ensure the magnet is not recessed into ferrous metals to prevent short-circuiting Usage Use as a work holding device for welding, sign making, or other industrial applications Ideal for reed switch operation

The Faithfull Button Magnets are made from Alnico to provide a high resistance to corrosion and operate in high temperatures up to 500°C. The north and south poles are on the same face and separated by a slot. All sizes have holes for mounting the magnet but they must not be recessed into ferrous metals as it will short circuit the magnetism. Suitable to be used as work holding devices for welding sign making and other applications or for reed switch operation.Diameter: 12.5mmHeight: 9.5mmPull Power: 0.7kgPTDFAIMAGBM125
